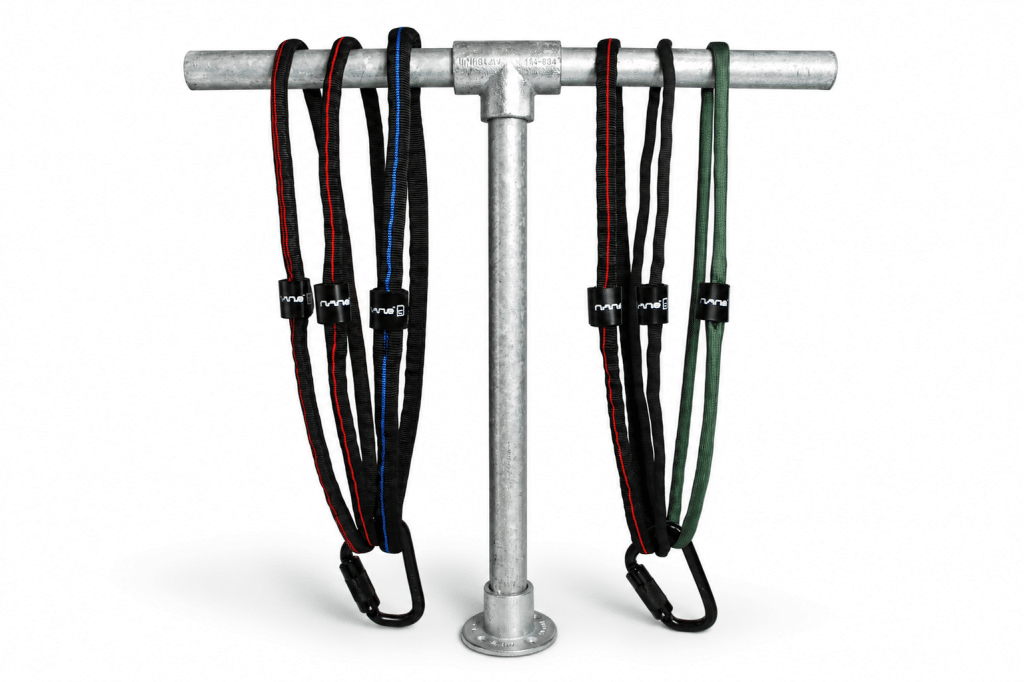

NANO SLINGS EN795:2012 Type B, CEN/TS16145:2013 EN1492-2 OSHA

The Nano Series comprises nine variants, each engineered with specific materials and features to suit different applications and environments. Designed for use as a PPE Anchorage but also as a lifting and rigging sling. All variants share the core design principle (endless fibre core + protective sleeve) and the 7:1 safety factor (FOR LIFTING) but differ in material composition and capacity range. The product names and their key characteristics are listed via their part numbers:

Product Features

Compact compression sleeving
Extreme strength to weight ratio
Various core options (Polyester/UHMPE/Aramid)
Various sleeving options (Polyester/UHMPE/Nomex)
Extra wear sleeve options
Flexible
Durable
Smallest and lightest sling of its kind
Patent Pending Thermo Sleeving
Digital RFID traceability

Product Specifications

User Weight: 59kg – 140kg
2 x user un CEN/TS16145:2013
WLL defined by MBL (see table)
70kN – 100kN (larger capacity available on request)
Working Length: 0.5m to 4.0m
Polyester, UHMPE & Aramid core options
Polyester, UHMPE & Nomex and Thermo core options

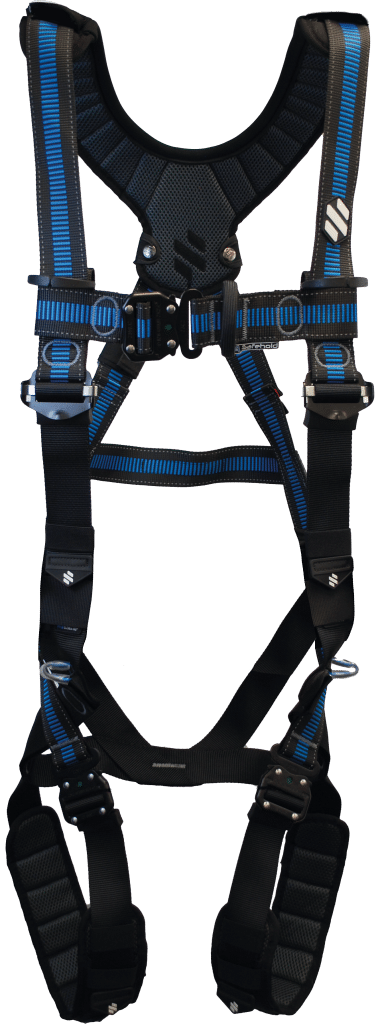

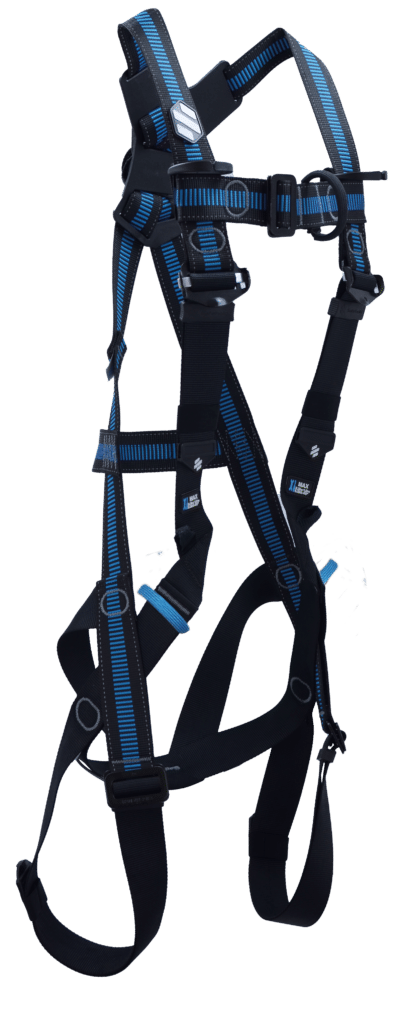

2 Point Safety Harness with shoulder and leg pads

EN 361:2002

Safety Harness

Reflective Webbing
Breakaway lanyard park loops
Soft loop UHMPE front connection
Alloy bar webbing adjuster
Soft grip webbing keepers
Elastic webbing tidy
Rated tool loop connection point
Patented hip fold
Soft loop UHMPE, hip work position connections
Load Indicators
Polyester webbing
Comfortable sub pelvic support
Water repellent webbing
Breathable zip on shoulder pads
Padded zip on comfort leg pads

Marked with:

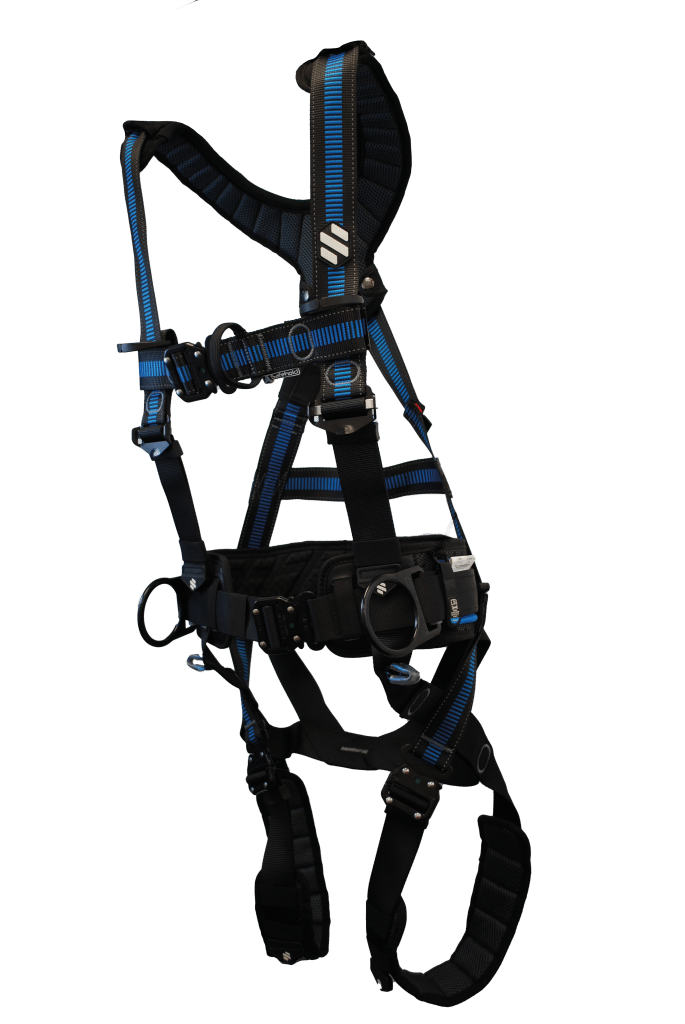

4 Point Safety Harness with waist belt, shoulder and leg pads

EN 361:2002, EN358:2018

Safety Harness

Reflective Webbing
Breakaway lanyard park loops
Soft loop UHMPE front connection
Alloy bar webbing adjuster
Soft grip webbing keepers
Elastic webbing tidy
Rated tool loop connection point
Patented hip fold
Soft loop UHMPE, hip work position connections
Load Indicators
Polyester webbing
Comfortable sub pelvic support
Water repellent webbing
Breathable zip on shoulder pads
Waist belt with Universal Rail Dock
Padded zip on comfort leg pads

Marked with:

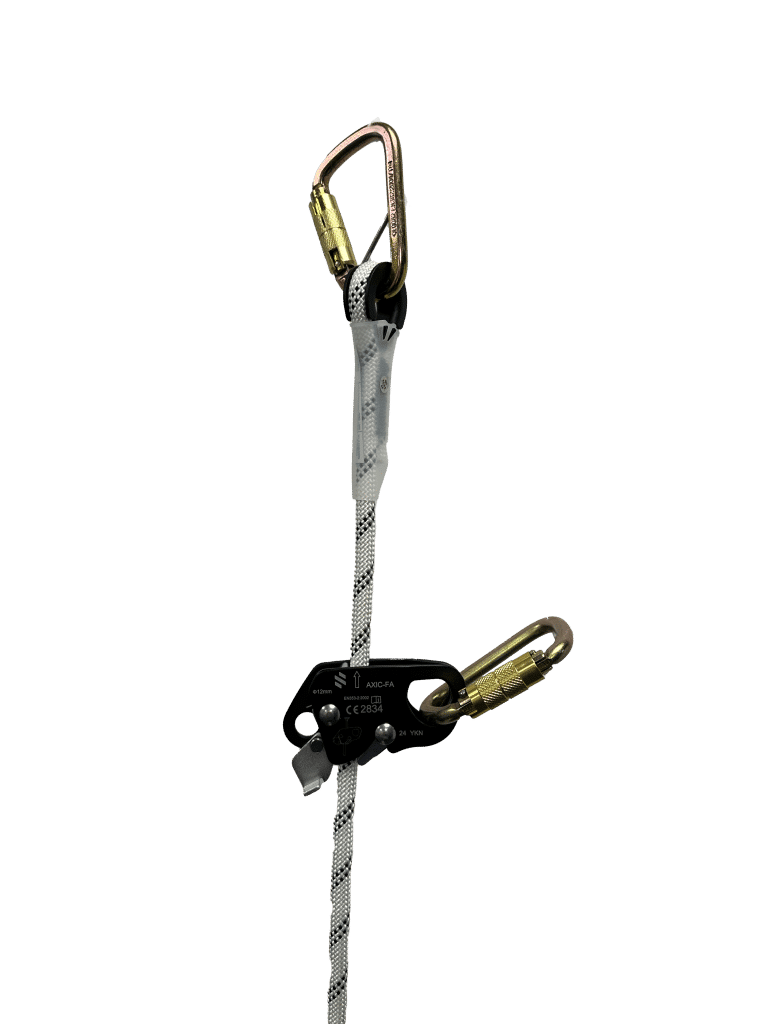

Rope Grabs

Standards: EN353-2:2002 & EN358:2018

Product Features

Can be used as vertical guided type arrester
Can be used for work positioning
Manual park brake
Automatic function with brake off
No shock absorber required on device or anchor
Sold individually or as a rope kit
Can be fitted with RFID

Product Specification

User capacityr: 140kg
EN353-2:2002 & EN358-2018
12mm kernmantle to EN1891 (11mm to 13mm range)
Weight: 160g
Sewn termination and end stop
Device: 40145
Length:

32129: 5m

32130: 10m

32132: 20m

32134: 30m

Marked with:

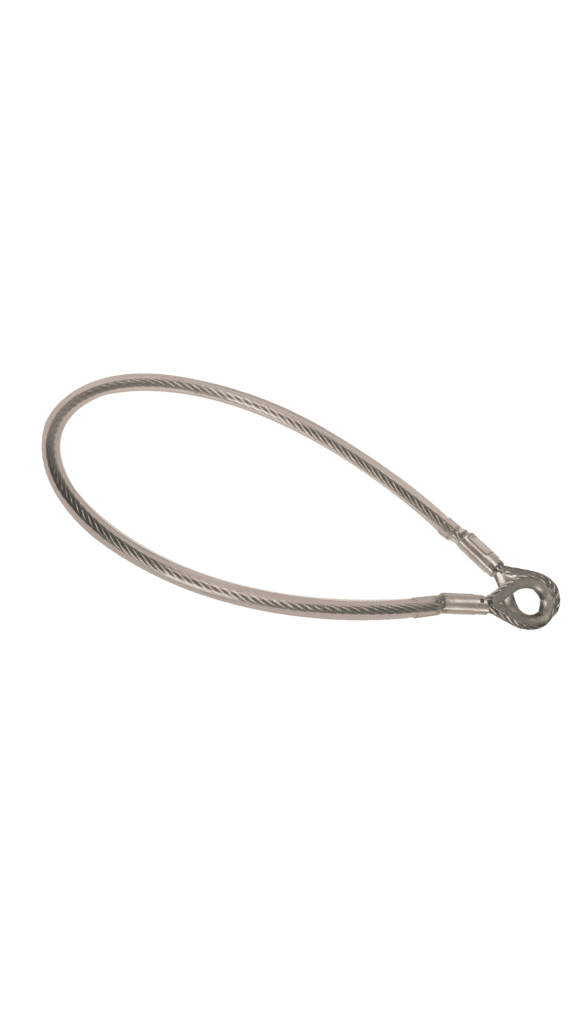

Wire Rope Anchor Sling

Standards: EN795:2012 Type B

Product Features

Tough and durable
Steel Thimble Eyes
Protective Clear Tubing
RFID options available
Compatible with Safehold HLL’s
Can be fitted with RFID

Product Specification

Capacity: 25kN
7mm Galavnised steel cable
Alloy ferrule termination
Length: 40031: 0.5m
40032: 1.0m
40033: 1.5m
40034: 2.0m
40035: 3.0m
40036: 4.0m
Material: Galvanised Steel Cable
PD CEN/TS 16415:2013

Marked with:

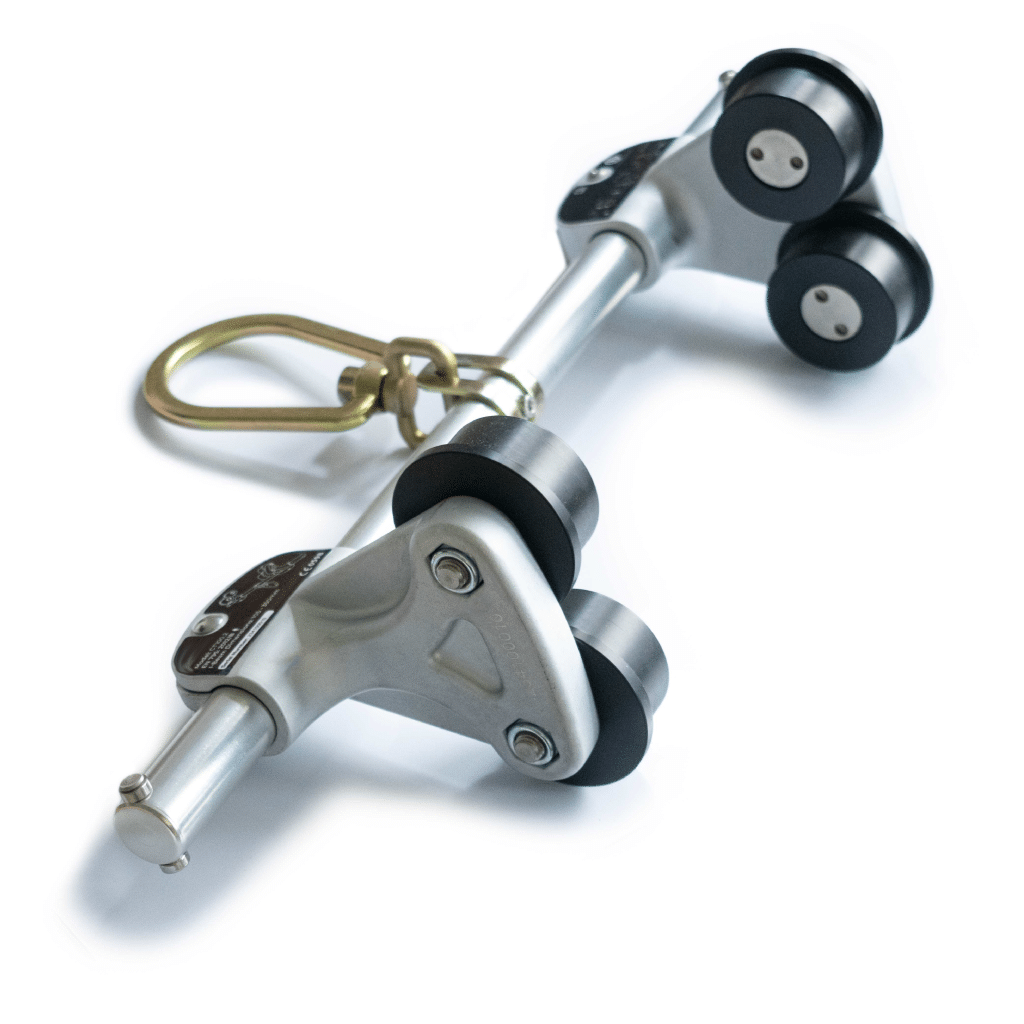

Beam Trolley EN795 Type B

Product Features

Dual independently sliding jaws for easy fitting
7075 grade aluminium construction keeps product weight to a minimum
Large zinc plated anchor point attachment
Dual action quick release ratchet mechanism for easy fitment
Integrated locking buttons

Product Specifications

Minimum breaking strength: 23kN
Weight: 2.6kg
Jaw material: forged alluminium alloy
Shaft material: zinc plated steel
Jaw finish: anodised
I Beam flange rating: 105mm to 350mm
Beam Thickness 6mm-30mm
Single user capacity 120kg

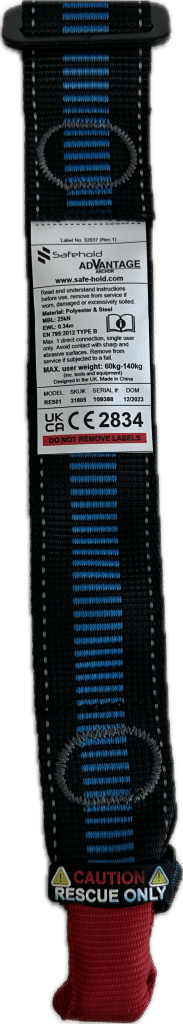

Rescue Ext Strop

Standards: EN795:2012 Type B

Product Features

Reflective Webbing
Pass through key to rear of harness
Red wear sleeve over attachment eye
Velcro tidy
Warning label
Polyester webbing
Water repellent webbing
Can be used with karabiner through fitting loop

Product Specification

User capacity: 140kg MBL: 25kN
340mm fitting to eye
Meets EN795:2012 Type B
Weight:0.1kg
Connector material: EDC coated steel
Webbing material: polyester

Marked with:

4 Point safety Harness

EN 361:2002, EN358:2018

Safety Harness

Reflective Webbing
Breakaway lanyard park loops
Soft loop UHMPE front connection
Alloy bar webbing adjuster
Soft grip webbing keepers
Elastic webbing tidy
Rated tool loop connection point
Patented hip fold
Soft loop UHMPE, hip work position connections
Load Indicators
Polyester webbing
Comfortable sub pelvic support
Water repellent webbing

Marked with:

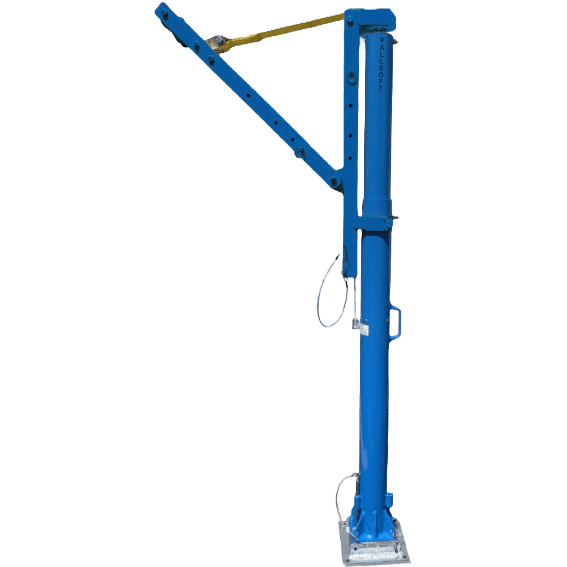

Boom Arm

Model: GM193 Boom Arm

Retrieval Boom Arm with variable offset positions: 16”, 20”, 25” & 30”. Comes with mounting bracket for connection of winch or SRL. Rotates 360 degrees around the GM200A Tie Off Mast.

Marked with:

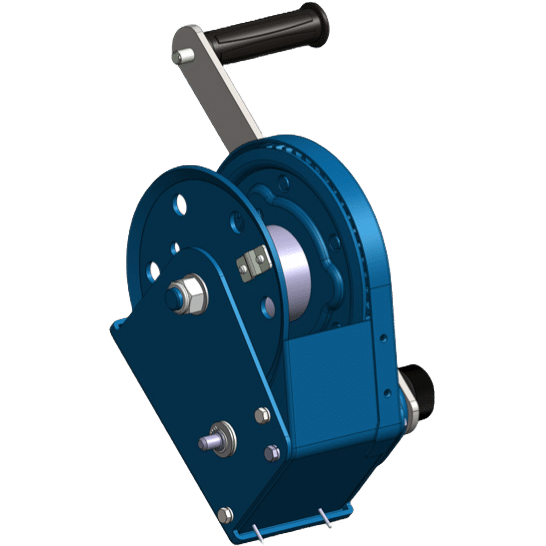

Boom Arm Winch Kit

Model: GM193 Boom Arm Winch Kit A Includes:

Personel Winch and mounting bracket to bit the GM 193 Boom Arm. Options of 60ft and 100ft in Galvansied Steel, Stainless Steel and UHMPE Syntheic Rope.

Model: GM193 Boom Arm Winch Kit B Includes:

SRLR and mounting bracket to bit the GM 193 Boom Arm. Options of 60ft and 100ft in Galvanized Steel.

Marked with:
